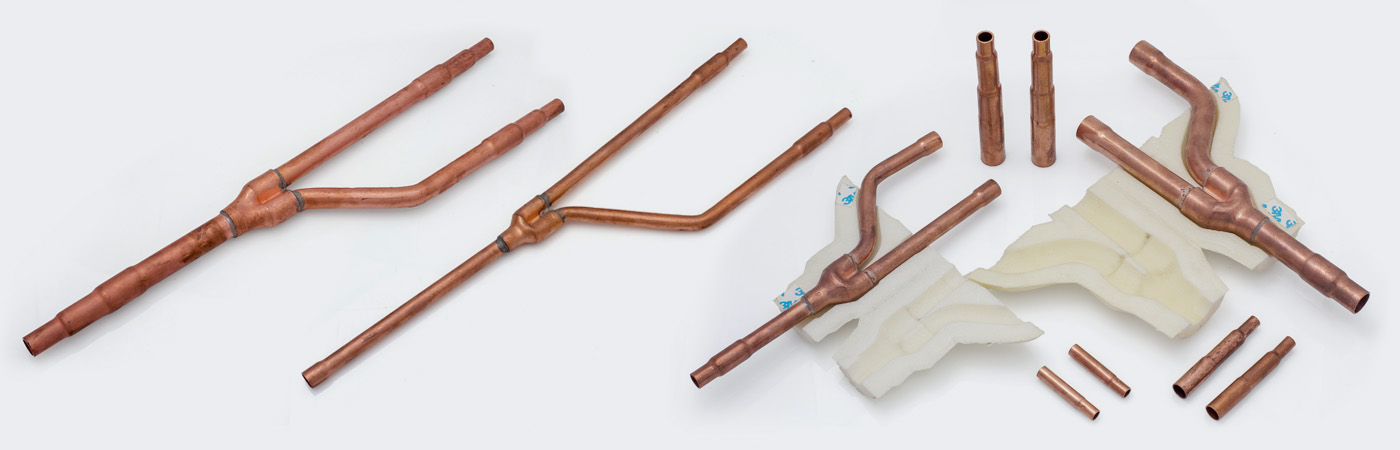

SAM Series - REF Joint for all types of VRF Systems working on R410 Refrigerant
SAM Series Branch Piping Kit was created specifically to work with variable refrigerant flow systems and is capable of withstanding the greater pressures that these systems produce.
VRF SAM Series Joint uses a variety of separation tubes, headers, and appropriate connectors. Every Joint which we manufacture goes through stringent quality control, each Y-Joint has to pass 5.2MPa pressure test before packing. Optimized shape dimension of our Ref Joints ensures enhanced fluency of refrigerant thereby increase overall cost performance of the VRF System.
Features of SAM Series
Leak Proof
ROHS Compliant
Precisiely Designed Joint
Pressure Tested At 5.2 MPA
As Per OEM Specification
Brazing By 2% or Higher Silver Brazing
XPLE Inulation
ArmaFlex® Insulation
Product Specification
Pipe-A |
Pipe-B |
Pipe-C |
Reducer Sets |
|
|---|---|---|---|---|
Ar-RBM-55E (Gas Side) |
15.88 (5/8) |
15.88 (5/8) |
15.88 (5/8) |
2, 3×2, 15×2 |
Ar-RBM-55E (Liquid Side) |
9.52 (3/8) |
9.52 (3/8) |
9.52 (3/8) |
1×2 |
Ar-RBM-105E (Gas Side) |
22.22 (7/8) |
22.22 (7/8) |
22.22 (7/8) |
15, 4×2, 5×2 |
Ar-RBM-105E (Liquid Side) |
15.88 (5/8) |
15.88 (5/8) |
15.88 (5/8) |
2, 15, 16 |
Ar-RBM-205E (Gas Side) |
21.75 (11/4) |
28.58 (11/8) |
28.58 (11/8) |
6, 7×2, 8, 9, 10, 15 |
Ar-RBM-205E (Liquid Side) |
15.88 (5/8) |
15.88 (5/8) |
15.88 (5/8) |
2, 3×2, 16 |
Ar-RBM-305E (Gas Side) |
81.10 (11/2) |
81.10 (11/2) |
81.10 (11/2) |
7, 11, 12×2, 13×3, 14×2, 15 |
Ar-RBM-305E (Liquid Side) |
22.22 (7/8) |
22.22 (7/8) |
22.22 (7/8) |
15, 16, 17×2 |
