BSR Series - REF Joint for all types of VRF Systems working on R410 Refrigerant

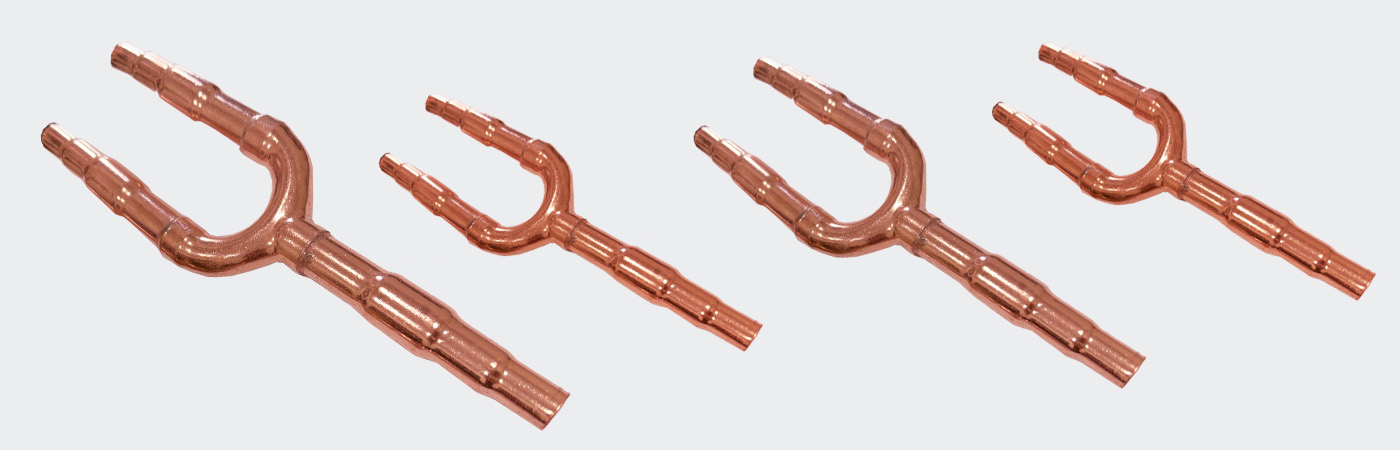

BSR Series Joints are used to accurately divide refrigerant between multiple branch units, which are connected by field pipes and indoor pipe connections. Along with numerous connectors, a complete set of liquid and suction Y-joints is provided.
With its Multi Step design, VRF BSR Series Y-Joints can be used with any VRF system. BSR Series Ref Joint comes with UV Stabilized Fire Grade XPLE Insulation which prevents Sweating of Ref Joints.
Features of BSR Series
Leak Proof
ROHS Compliant
Precisiely Designed Joint
Pressure Tested At 5.2 MPA
As Per OEM Specification
Brazing By 2% or Higher Silver Brazing
XPLE Inulation
ArmaFlex® Insulation
Product Specification
Model No |
Pipe-A (ID) |
Pipe-B (ID) |
Pipe-C (ID) |
|---|---|---|---|
Ar-BVRJ-5-6-I (Gas Side) |
12.07 - 15.88 - 19.05 |
19.05 - 15.88 - 12.7 |
19.05 - 15.88 - 12.7 |
Ar-BVRJ-5-6-I (Liquid Side) |
6.35 - 9.52 - 12.7 |
12.7 - 9.52 - 6.35 |
12.7 - 9.52 - 6.35 |
Ar-BVRJ-8-19-I (Gas Side) |
19.05 - 22.22 - 28.58 - 31.75 |
31.75 - 28.58 - 22.22 - 19.05 - 15.88 - 12.7 |
31.75 - 28.58 - 22.22 - 19.05 - 15.88 - 12.7 |
Ar-BVRJ-8-19-I (Liquid Side) |
9.52 - 12.7 - 15.88 |
15.88 - 12.7 - 9.52 - 6.35 |
15.88 - 12.7 - 9.52 - 6.35 |
Ar-BVRJ-24-63-I (Gas Side) |
41.28 - 34.93 |
34.93 - 28.58 - 22.22 - 19.05 - 15.88 - 12.7 |
34.93 - 41.28 |
Ar-BVRJ-24-63-I (Liquid Side) |
12.7 - 15.88 - 19.05 - 22.22 |
19.05 - 15.88 - 12.7 - 9.52 |
22.22 - 19.05 - 15.88 - 12.7 |
Ar-BVRJ-24-63-O (Gas Side) |
28.58 - 34.93 - 41.28 |
34.93 - 28.58 |
41.28 - 34.93 - 28.58 |
Ar-BVRJ-24-63-O (Liquid Side) |
15.88 - 19.05 |
19.05 - 15.88 - 12.7 |
19.05 - 15.88 |
