MHI Series - REF Joint for all types of VRF Systems working on R410 Refrigerant
A VRF System circulates as little refrigerant as possible during a single heating or cooling cycle. Using this mechanism, users can now control multiple zones of air conditioning simultaneously.

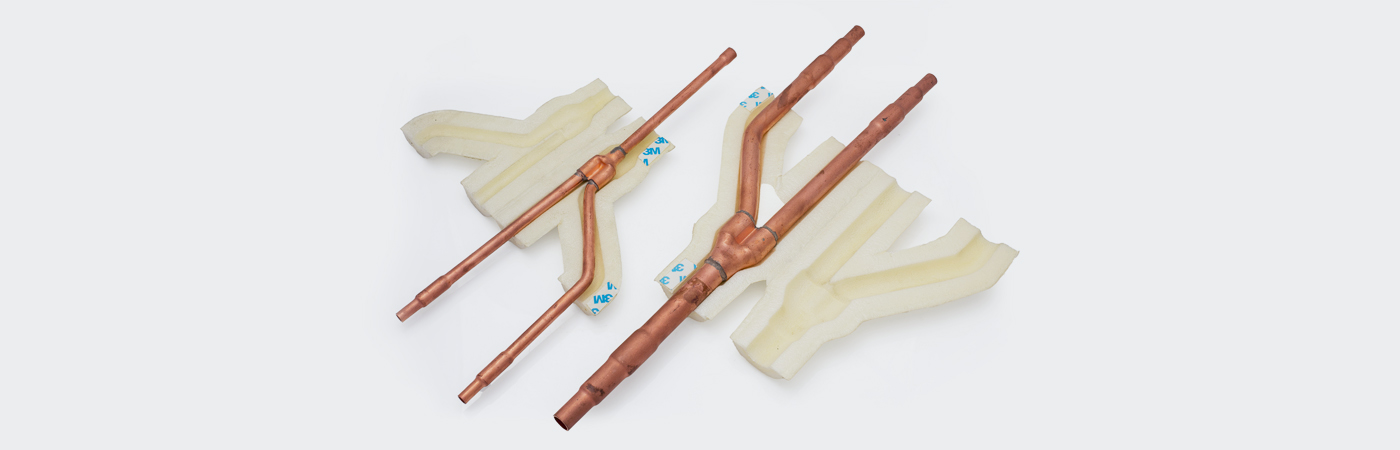

MHI Series Ref Joint uses a variety of separation tubes, headers, and appropriate connectors. Having a multi-step design, our HAE Series Branch Piping Kit can easily be connected to multiple pipe sizes.
Features of MHI Series
Leak Proof
ROHS Compliant
Precisiely Designed Joint
Pressure Tested At 5.2 MPA
As Per OEM Specification
Brazing By 2% or Higher Silver Brazing
XPLE Inulation
ArmaFlex® Insulation
Product Specification
Model No |
Pipe-A (ID) |
Pipe-B (ID) |
Pipe-C (ID) |
Reducer |
|---|---|---|---|---|
Ar-18M7 (Gas Side) |
28.58 - 25.4 |
22.2 - 25.4 - 28.58 |
22.2 - 19.05 - 15.88 - 12.7 |
28.58 OD X 25.4 ID X 22.2 ID X 19.05 ID X 15.88 ID X 12.7 ID - 1 Nos 9.52 ID X 12.7 OD - 1 Nos |
Ar-18M7 (Liquid Side) |
12.7 |
12.7 - 9.52 |
12.7 - 9.52 - 6.35 |
9.52 ID X 6.35 OD - 1 Nos |
Ar-26M7 (Gas Side) |
28.58 - 25.4 |
22.2 - 25.4 - 28.58 |
22.2 - 19.05 - 15.88 - 12.7 |
28.58 OD X 25.4 ID X 22.2 ID X 19.05 ID X 15.88 ID X 12.7 ID - 1 Nos 9.52 ID X 12.7 OD - 1 Nos |
Ar-26M7 (Liquid Side) |
15.88 |
19.05 - 15.88 - 12.7 - 9.52 |
15.88 - 12.7 - 9.52 - 6.35 |
9.52 ID X 6.35 OD - 1 Nos |
Ar-48M7 (Gas Side) |
38.1 - 31.75 |
31.75 - 38.1 |
28.58 |
28.58 OD X 25.4 ID X 22.2 ID X 19.05 ID X 15.88 ID X 12.7 ID - 1 Nos 31.75 OD X 28.58 ID X 25.4 ID X 22.2 ID - 1 Nos 38.1 OD x 34.93 ID - 1 Nos |
Ar-48M7 (Liquid Side) |
19.05 - 22.2 |
22.2 - 19.05 - 15.88 - 12.7 - 9.52 |
19.05 - 15.88 - 12.7 - 9.52 - 6.35 |
9.52 ID X 6.35 OD - 1 Nos |
Ar-72M7 (Gas Side) |
50.8 - 44.4 - 41.28 |
41.28 - 44.44 - 41.28 - 38.10 - 31.75 |
38.10 - 31.75 - 28.58 - 25.4 |
25.4 ID X 22.2 ID X 19.05 ID X 15.88 OD - 1 Nos 50.8 ID X 44.44 OD - 1 Nos |
Ar-72M7 (Liquid Side) |
22.22 - 25.4 |
22.22 - 19.05 - 15.88 - 12.7 |
22.22 - 19.05 - 15.88 |
9.52 ID X 12.7 OD - 1 Nos |
