ME Series - REF Joint for all types of VRF Systems working on R410 Refrigerant

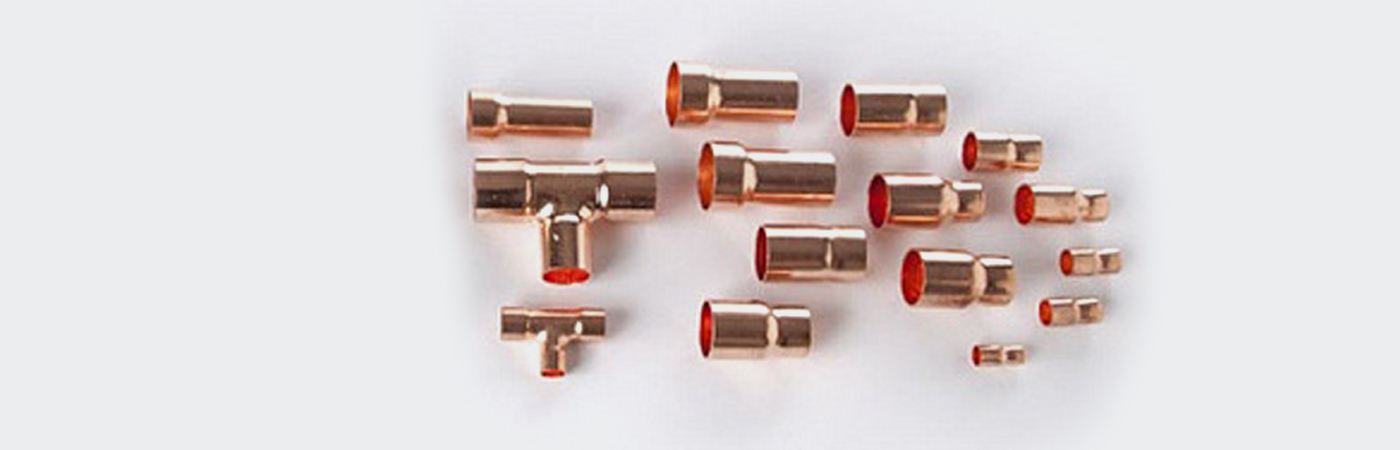

ME Series Tee Joints are used to accurately divide refrigerant between multiple branch units, which are connected by field pipes and indoor pipe connections. A whole set of Liquid Tee Joints and Suction Tee Joints is included, along with multiple connectors.
It comes with XPLE insulation along with all the connectors as per industry standard. ME Series Branch piping work uses number of separation tubes and headers. This Tee Joints can also be used in several other HVAC & R application due to its conventional design.
Features of ME Series
Leak Proof
ROHS Compliant
Precisiely Designed Joint
Pressure Tested At 5.2 MPA
As Per OEM Specification
XPLE Inulation
ArmaFlex® Insulation
Product Specification
Pipe-A |
Pipe-B |
Pipe-C |
Reducer Sets |
|
|---|---|---|---|---|
Ar-102SS-G2 (Gas Side) |
15.88 (5/8) |
19.05 (3/4) |
19.05 (3/4) |
6, 7, 8×2 |
Ar-102SS-G2 (Liquid Side) |
9.52 (3/8) |
9.52 (3/8) |
9.52 (3/8) |
1×2 |
Ar-102LS-G2 (Gas Side) |
19.05 (3/4) |
25.4 (1) |
25.4 (1) |
7, 8, 9, 12, 13×2, 14×2 |
Ar-102LS-G2 (Liquid Side) |
9.52 (3/8) |
12.7 (1/2) |
12.7 (1/2) |
1, 3×2 |
Ar-202S-G2 (Gas Side) |
19.05 (3/4) |
25.4 (1) |
25.4 (1) |
7, 8, 9, 10, 15×3 |
Ar-202S-G2 (Liquid Side) |
12.7 (1/2) |
15.88 (5/8) |
15.88 (5/8) |
2, 3, 5, 6 |
Ar-302S-G2 (Gas Side) |
25.4 (1) |
31.75 (11/4) |
31.75 (11/4) |
11, 12, 13, 14, 15, 16, 17×2, 18×2 |
Ar-302S-G2 (Liquid Side) |
15.88 (5/8) |
19.05 (3/4) |
19.05 (3/4) |
4, 5, 6, 7, 8 |
Ar-62S-GE (Gas Side) |
15.88 (5/8) |
19.05 (3/4) |
19.05 (3/4) |
6, 7, 8×2, 9 |
Ar-62S-GE (Liquid Side) |
9.52 (3/8) |
9.52 (3/8) |
9.52 (3/8) |
1×2, 19×2 |
