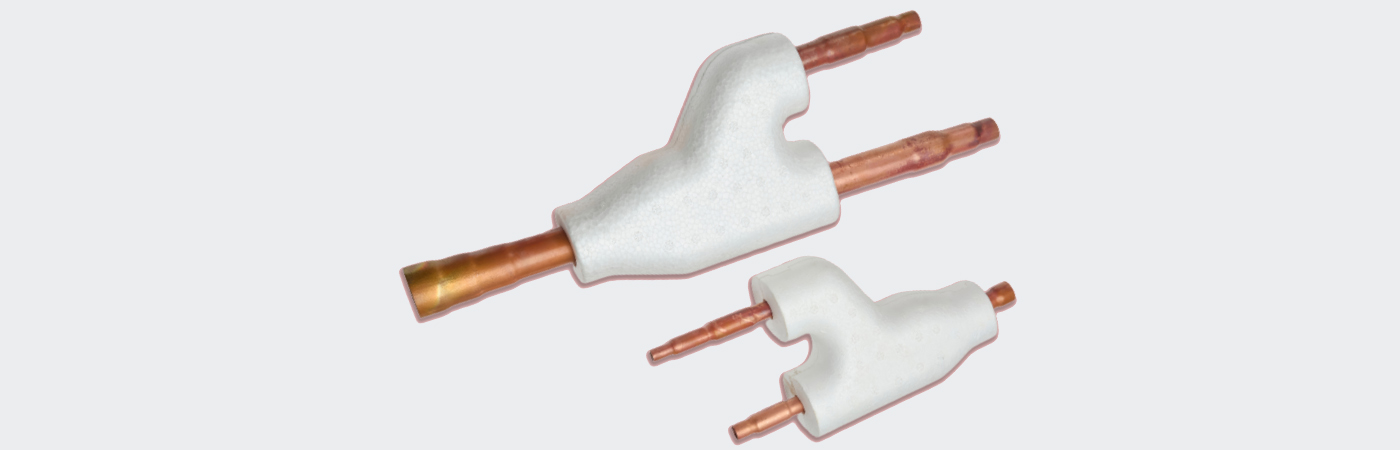

DA Series With EPS Insulation - Y-Joint for all types of VRV/VRF Systems working on R410 Refrigerant
DA Series Y-Joints allow VRF/VRV systems to connect multiple indoor units to a single outdoor unit, supporting diverse layouts and configurations in buildings of varying sizes.
DA Series Y-Joints comes with EPS (Expanded Polystyrene) insulation which can be used with any VRV/VRF systems. Y-Joint with EPS generally has lower thermal conductivity than XLPE, providing better insulation and reducing heat transfer. This minimizes energy loss in VRF/VRV systems.
Features of DA Series With EPS Insulation
Leak Proof
ROHS Compliant
Finely Crafted Joint
Pressure Tested At 5.2 MPA
Precisely Designed Self-Locking EPS Solution
Brazing By 2% or Higher Silver Brazing
Product Specification
Pipe-A |
Pipe-B |
Pipe-C |
|
|---|---|---|---|
Ar-KHRP-22T (Gas Side) |
12.7 (1/2) – 15.88 (5/8) – 19.05 (3/4) |
15.88 (5/8) – 12.7 (1/2) |
15.88 (5/8) – 12.7 (1/2) |
Ar-KHRP-22T (Liquid Side) |
9.52 (3/8) |
9.52 (3/8) – 6.35(1/4) |
9.52 (3/8) – 6.35(1/4) |
Ar-KHRP-33T (Gas Side) |
22.22 (7/8) – 19.05 (3/4) |
19.05 (3/4) – 15.88 (5/8) |
15.88 (5/8) – 12.7 (1/2) |
Ar-KHRP-33T (Liquid Side) |
9.52 (3/8) |
9.52 (3/8) – 6.35 (1/4) |
9.52 (3/8) – 6.35 (1/4) |
Ar-KHRP-72T (Gas Side) |
31.75 (11/4) -28,58 ( 11/8) – 25.4 (1) |
25.4 (1) – 19.05(3/4) – 15.88 (5/8) |
19.05 (3/4) – 15.88 (5/8) – 12.7 (1/2) |
Ar-KHRP-72T (Liquid Side) |
15.81 (5/8) – 12.7 (1/2) |
12.7 (1/2) – 9.52 (3/8) |
12.7 (1/2) – 9.52 (3/8) – 6.35 (1/4) |
Ar-KHRP-73T (Gas Side) |
38.10 (11/2) – 31.75 (11/4) |
31.75 (11/4) – 28.58 (11/8) – 25.4 (1) |
25.4 (1) – 19.05 (3/4) – 15.88 (5/8) |
Ar-KHRP-73T (Liquid Side) |
15.88 (5/6) – 19.05 (3/4) |
19.05 (3/4) – 15.88 (5/8) – 12.7 (1/2) |
15.88 (5/8) – 12.7 (1/2) – 9.52 (3/8) |
