MI Series - REF Joint for all types of VRF Systems working on R410 Refrigerant
A VRF System circulates as little refrigerant as possible during a single heating or cooling cycle. Using this mechanism, users can now control multiple zones of air conditioning simultaneously.

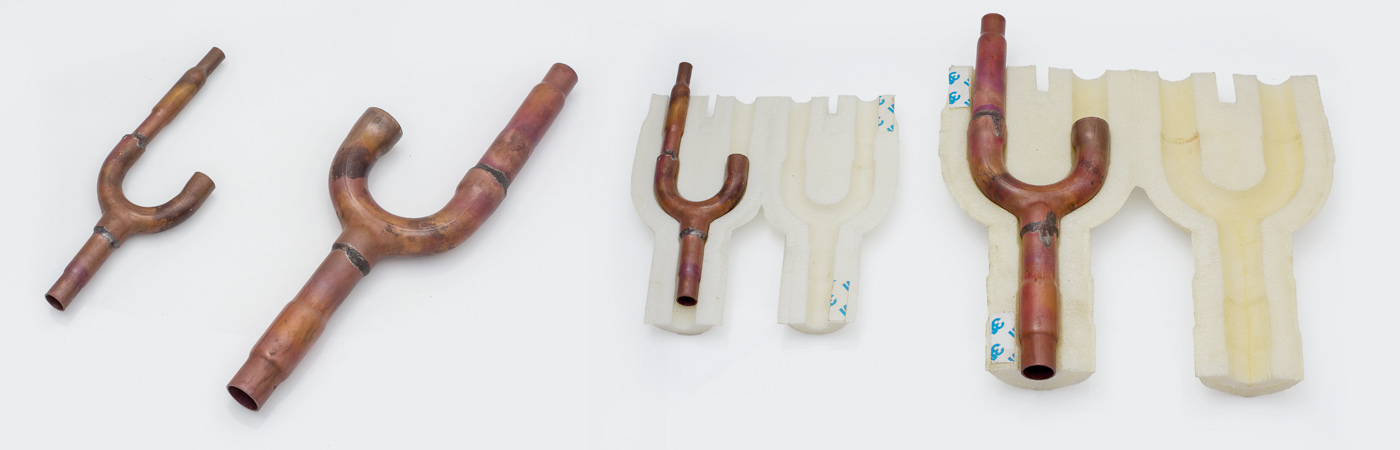

MI Series Ref Joint comes with UV Stabilized Fire Grade XPLE Insulation which prevents Sweating of Ref Joints. A whole set of Liquid Y-Joints and Suction Y-Joints is included, along with multiple connectors.
Features of MI Series
Leak Proof
ROHS Compliant
Precisiely Designed Joint
Pressure Tested At 5.2 MPA
As Per OEM Specification
Brazing By 2% or Higher Silver Brazing
XPLE Inulation
ArmaFlex® Insulation
Product Specification
Pipe-A |
Pipe-B |
Pipe-C |
|
|---|---|---|---|
Ar-FQZHN-01 (Gas Side) |
19.05 (3/4) – 15.88 (5/8) |
19.05 (3/4) – 15.88 (5/8) – 12.7 (1/2) |
19.05 (3/4) – 15.88 (5/8) – 12.7 (1/2) |
Ar-FQZHN-01 (Liquid Side) |
12.7 (1/2) – 9.52 (3/8) |
12.7 (1/2) – 9.52 (3/8) – 6.35 (1/4) |
12.7 (1/2) – 9.52 (3/8) – 6.35 (1/4) |
Ar-FQZHN-02 (Gas Side) |
25.4 (1) – 22.2 (7/8) |
22.2 (7/8) – 19.05 (3/4) – 15.88 (5/8) |
22.2 (7/8) – 19.05 (3/4) – 15.88 (5/8) – 12.7 (1/2) |
Ar-FQZHN-02 (Liquid Side) |
9.52 (3/8) – 12.7 (1/2) |
12.7 (1/2) – 9.52 (3/8) – 6.35 (1/4) |
12.7 (1/2) – 9.52 (3/8) – 6.35 (1/4) |
Ar-FQZHN-03 (Gas Side) |
31.75 (11/4) – 28.58 (11/8) |
28.58 (11/8) – 22.2 (7/8) – 19.05 (3/4) |
28.58 (11/8) – 22.2 (7/8) – 19.05 (3/4) – 15.88 (5/8) |
Ar-FQZHN-03 (Liquid Side) |
19.05 (3/4) – 15.88 (5/8) |
15.88 (5/8) – 12.7 (1/2) – 9.52 (3/8) |
15.88 (5/8) – 12.7 (1/2) – 9.52 (3/8) – 6.35 (1/4) |
Ar-FQZHN-04 (Gas Side) |
38.10 (11/2) – 34.93 (13/8) |
34.93 (13/8) – 28.58 (11/8) – 22.2 (7/8) |
34.93 (13/8) – 28.58 (11/8) – 22.2 (7/8) – 19.05 (3/4) |
Ar-FQZHN-04 (Liquid Side) |
22.2 (7/8) – 19.05 (3/4) |
19.05 (3/4) – 15.88 (5/8) – 12.7 (1/2) |
19.05 (3/4) – 15.88 (5/8) – 12.7 (1/2) – 9.52 (3/8) |
